Barrier terminal block HB825 Pin pitch: :8.25mm

    Buy cheap Barrier terminal block HB825 Pin pitch: :8.25mm from wholesalers

    Buy cheap Barrier terminal block HB825 Pin pitch: :8.25mm from wholesalers
    • Buy cheap Barrier terminal block HB825 Pin pitch: :8.25mm from wholesalers

    Barrier terminal block HB825 Pin pitch: :8.25mm

    Ask Lasest Price
    Brand Name : STARPAI
    Model Number : HB825
    Certification : EC,UL,Rohs
    Price : 0.1USD
    Delivery Time : 25 days after 100% T/T payment
    Payment Terms : 30Days
    Supply Ability : 100000K/pcs
    • Product Details
    • Company Profile

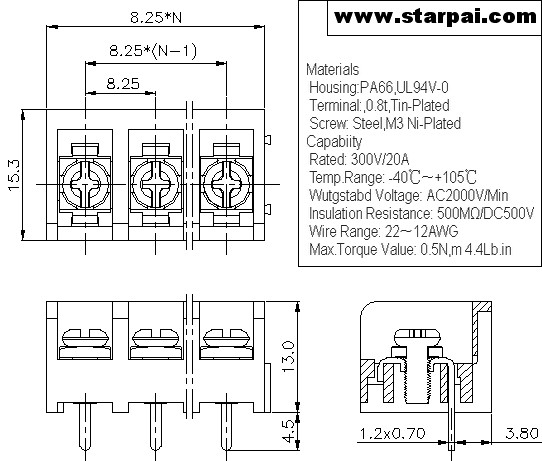

    Barrier terminal block HB825 Pin pitch: :8.25mm

    Materials and specifications
    Plastic parts: PA66 UL94V - 0
    Terminal: brass, 0.8 thick tin plating
    Screw: steel, M3 nickel plating


    performance
    Rated voltage/current: 300 v / 10 a
    Temperature: - 40 ℃ ~ + 105 ℃
    The withstand voltage: AC2000V/Min
    Insulation resistance: 500 mΩ / DC500V

    Barrier terminal block HB825 Pin pitch: :8.25mm
