Brand Name : | STARPAI |
Model Number : | 510-01-3.81-02-03 |
Certification : | EC,UL,Rohs |
Price : | 0.54 USD/pcs |
Delivery Time : | 25 days after 100% T/T payment |
Payment Terms : | T/T |
Supply Ability : | 100000K/pcs |
Technical parameters | Values (range) |
---|---|
UL-Technical Data | |

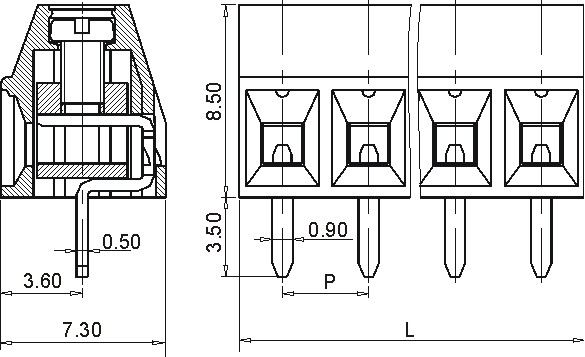

Poles Space: | 3.81 mm |
Rated voltage: | 300V |
Rated current: | 10A |
Pressure line range: | 16-30AWG |
IEC-Technical Data | |
Overvoltage Category - Degree of pollution: | 3 Grad |
Rated voltage: | 160V |
Rated impulse voltage: | 2.5KV |
Rated cross-section - rated current: | 1.5mm2/10A |
Material | |
Insulating materials: | PA |
Flammability rating: | UL94,V-0 |
Contact materials: | Brass |
Contact point of coating: | Plating Sn |
![]() |
